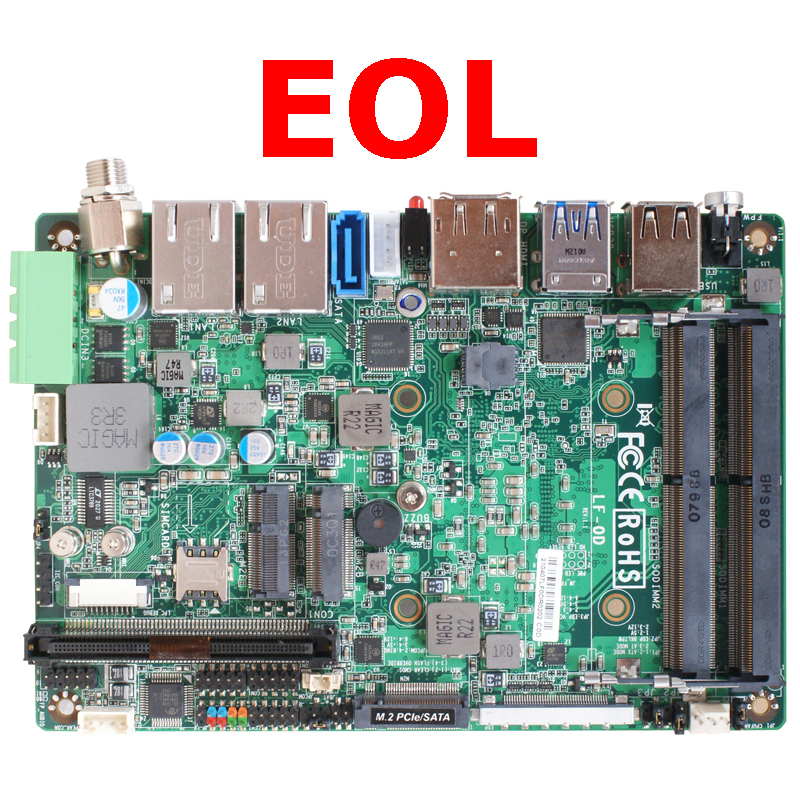

JLF0DV Series

Model

– JLF0DV-20 (8365UE)
– JLF0DV-22 (8365UE, TPM2.0)
– JLF0DV-40 (i5-8265U)
– JLF0DV-42 (i5-8265U, TPM2.0)
– JLF0DV-70 (4305UE)
– JLF0DV-72 (4305UE, TPM2.0)

Form Factor

– 3.5” ( 146 * 102mm)

Processor System

– Intel® 8th Gen Whiskey Lake-U Quad Core MCP Processor
– Intel SoC chipset
– AMI 128Mb Flash ROM BIOS

Memory

– 2* DDR4 2400MHz DRAM SO-DIMM up to 64GB

Storage

– 1* M.2 M-key (2242/2280, SATA or NVMe- PCI-Ex4)
– 1* SATAIII (6.0Gb/s)

Expansion Slot

– 1* M.2 E-key (2230,Support CNVi)
– 1* M.2 B-key (3042/3052, Support 4G/5G Module)
– 1* SIM Card Holder (Nano)

Ethernet

– 1* Intel® i219LM GbE
– 1* Intel® i225-V 2.5GbE

Graphics

– Intel® HD Graphics, shared memory
– 1* HDMI 1.4 (Max Resolution : 4096×2304@24Hz)
– 1* DP (Max Resolution : 4096×2304@60Hz)
– 1* eDP (Max Resolution : 4096×2304@60Hz)
– Support Triple Displays

Audio

– USB Audio
– 3W Amplifier speaker

Internal I/O

– 1* USB2.0
– 2* RS232/422/485
– 1* SATAIII
– 3* M.2 (M-key, E-key, B-key)
– 1* GPIO (8 bit, 5V)
– 1* AT mode
– 1* I2C/SMBUS
– 1* FP_Audio
– 1* Speaker
– JLF0DV-42 support TPM2.0 (Option)

External I/O

– 1* HDMI
– 1* DP
– 2* RJ45
– 2* USB3.0
– 2* USB2.0
– Power button
– Power LED, HDD LED
– 12~36V DC-in jack

Watchdog Timer

– From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)

Power

DC-in 12~36V, AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready

Compliance

– CE, FCC, RoHS, REACH

Temperature

– Operating: 0°C ~ 60°C
– Storage: -20°C ~ 70°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)

OS Support

– Windows 10, Linux

Warranty

– 2 Years Limited Warranty

 Part Number

 Description

 JLF0DV Series

 JLF0DV Series M/B

 G01-COM-H2M20-1F

 2* COM cable

 G01-SATA3-BL-1F

 1* SATAIII cable

 HCS5XXXMHT01S-F

 1* Flat type Heatsink
