Overview｜Specifications｜Standard Accessories｜I/O Diagram｜Mechanical
|
Model No. |
– HPC080SC-FP2807A |
|
Part No. |
– HPC080SC-FP2807A |
| Overview | TOP∧ |
Jetway HPC080SC-FP2807A Flat-Panel Fanless Panel PC provides outstanding outlook with industrial-grade quality for comprehensive industrial markets, such as retails, wholesales, hospitality, hospital or meeting room registration, logistics, self-service kiosk, residential automation and digital signage.
Jetway HPC080SC-FP2807A Flat-Panel Fanless Panel PC is designed with 10-points Multi capacitive type touch screen. High brightness TFT LCD panel with LED backlight are equipped with this model. Streamlined enclosure with narrow bezel design.
Jetway HPC080SC-FP2807A Flat-Panel Fanless Panel PC is designed with a true flat, easy-to-clean front surface with edge-to-edge design. It is designed mounting clips for easy Wall mount, Panel Mount, VESA Mount installation.
Welcome to use Jetway Flat-Panel Panel PC.
| Specifications | TOP∧ |
|
Display |
|
|
Front Bezel |
– NEMA 4 rugged protection, Full planar metal border |
|
Display Type |
– 8″ With LED Backlight |
|
Brightness (cd/m²) |
– 400 nits |
|
Display Color |
– 16.7M |
|
Resolution |
– 1024 x 768 @ 60Hz |
|
Viewing Angle (H/V) |
– 160°/160° |
|
Pixel Pitch |
– 0.158 x 0.158 mm |
|
Aspect Ratio |
– 4:3 |
|
Contrast Ratio |
– 700:1 |
|
Response Time |
– 30 ms |
|
Touch Screen |
|
|
Type |
– projected capacitive type |
|
Active Range |
– 163.05 x 122.54mm ±0.2mm |
|
Transparency |
– ≧85% |
|
Surface Hardness |
– ≧6H (JIS-5400) |
|
Glass haze value |
– ≦ 3% |
|
CASE |
|
|
Panel Material |
– Aluminum |
|
Case Material |
– Iron |
|
Color |
– Silver + white |
|
Coating Requirement |
– Spray Paint |
|
Main System |
|
|
CPU |
– Intel® Bay Trail-M N2807 1.58GHz/DC |
|
RAM |
– 2G 1333MHz DDR3L SAMSUNG DRAM |
|
BIOS |
– 64MB SPI Flash ROM |
|
Storage |
– 1 * mSATA connector (Full size) |
|
Watchdog Timer |
– 256 levels, 0~255 sec. |
|
OS Support |
– Windows 7 / 8.1 / 10 / Linux (Option) |
|
I/O Connector |
|
|
I/O Ports and Switches |
– 1 * USB3.0 |
|
Expansion Interface |
|
|
Expansion |
– 1 * PCI-E mini card for WIFI or 3G/4G |
|
Power |
|
|
Power Input |
– Supports 12V DC Power in with over current protection fuse |
|
Power Consumption |
– 13W |
|
Dimension |
|
|
Case Dimensions |
– 199.05*158.54*57.70mm |
|
Certifications |
|
|
Certifications |
– CE, FCC, option |
|
Environment |
|
|
Temperature |
– Operating Temperature: -10 ~ 60° C (with W.T. DRAM/HDD in airflow condition) |
|
Shock |
– Operating: 15G，11ms duration |
|
Vibration |
– Operating: 5~500Hz/1 Grms |
|
Warranty |
|
|
Warranty |
– 2 Years Limited Warranty(Panel and Touch is only Warranty 1 Year) |
* Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.
| Standard Accessories | TOP∧ |
|
Part Number |
Description |
Part Number |
Description |
|
HPC080SC-FP2807A |
L01AS053-F |
Adapter 12V/5A 60W |
|
|
Change according to shipping area |
Power cord |
J05-ANT-GX55240-F |
L-Antenna |
|
HPC-HB (option) |
2* Mounting Clips |
|
|

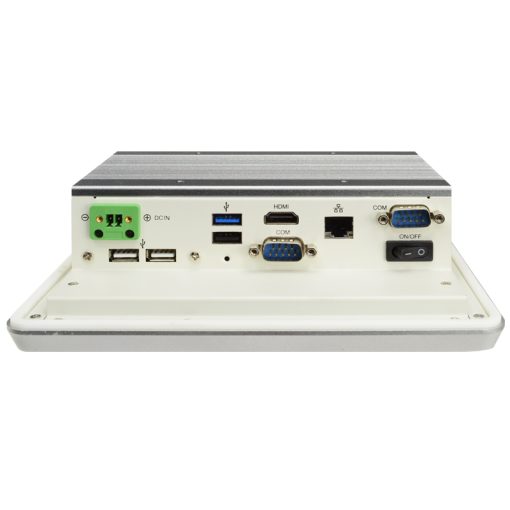

| I/O Diagram | TOP∧ |
| Mechanical | TOP∧ |
| Install Optional Fixed Parts | TOP∧ |
*Note: For detailed installation description please refer to user’s manual.
| Lockable USB Installation | TOP∧ |
*Note: For detailed installation description please refer to user’s manual.
